Electrical Lock-Out/Tag-Out Training System

Safety is the foundation of any successful industrial operation, and mastering safety procedures is essential for all industrial workers. The control of hazardous energy, especially electricity, is a critical safety skill that minimizes the risk of injury or death. The Occupational Safety and Health Administration (OSHA) emphasizes the importance of proper lock-out/tag-out (LOTO) practices to protect workers from dangerous energy releases.

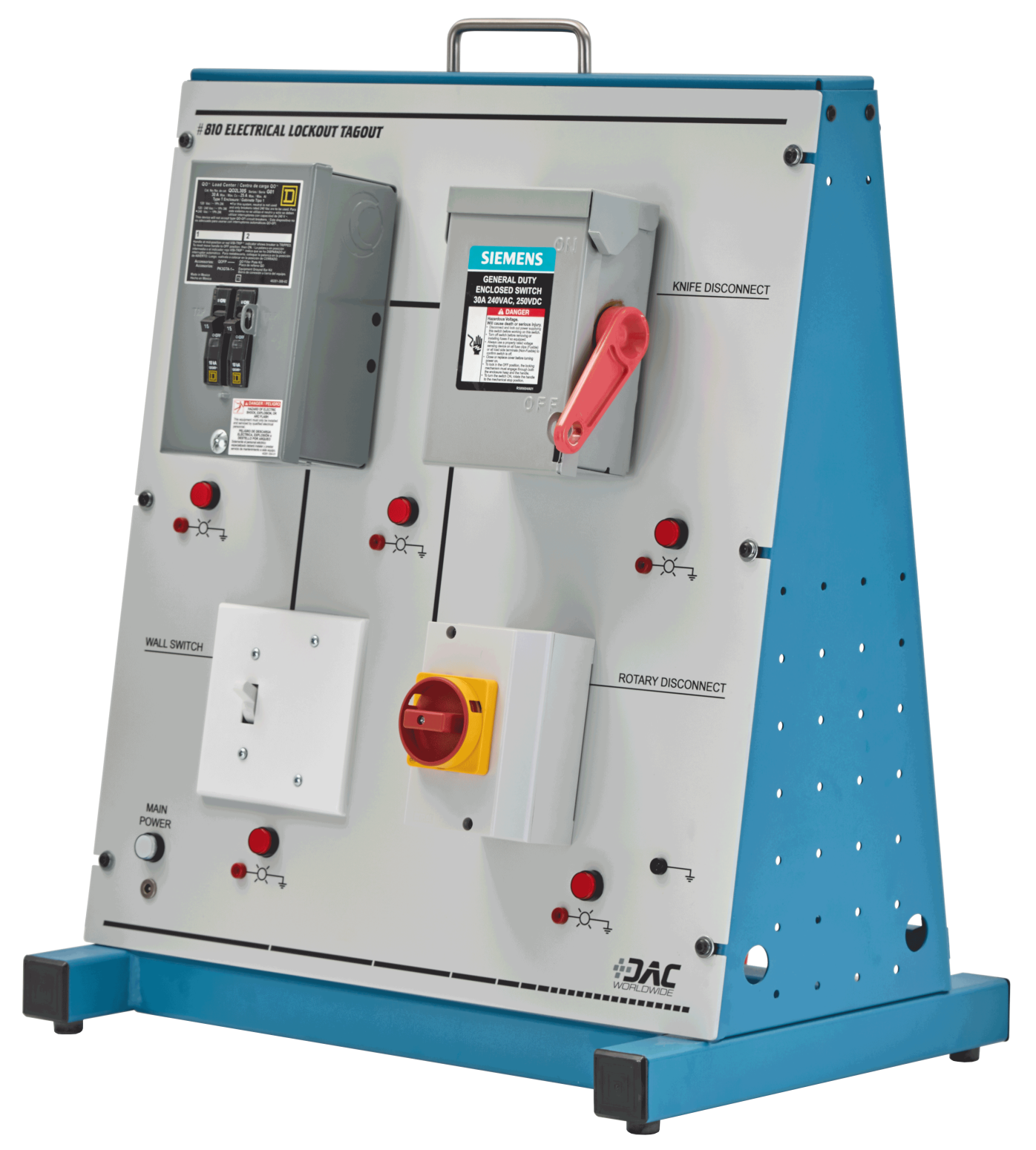

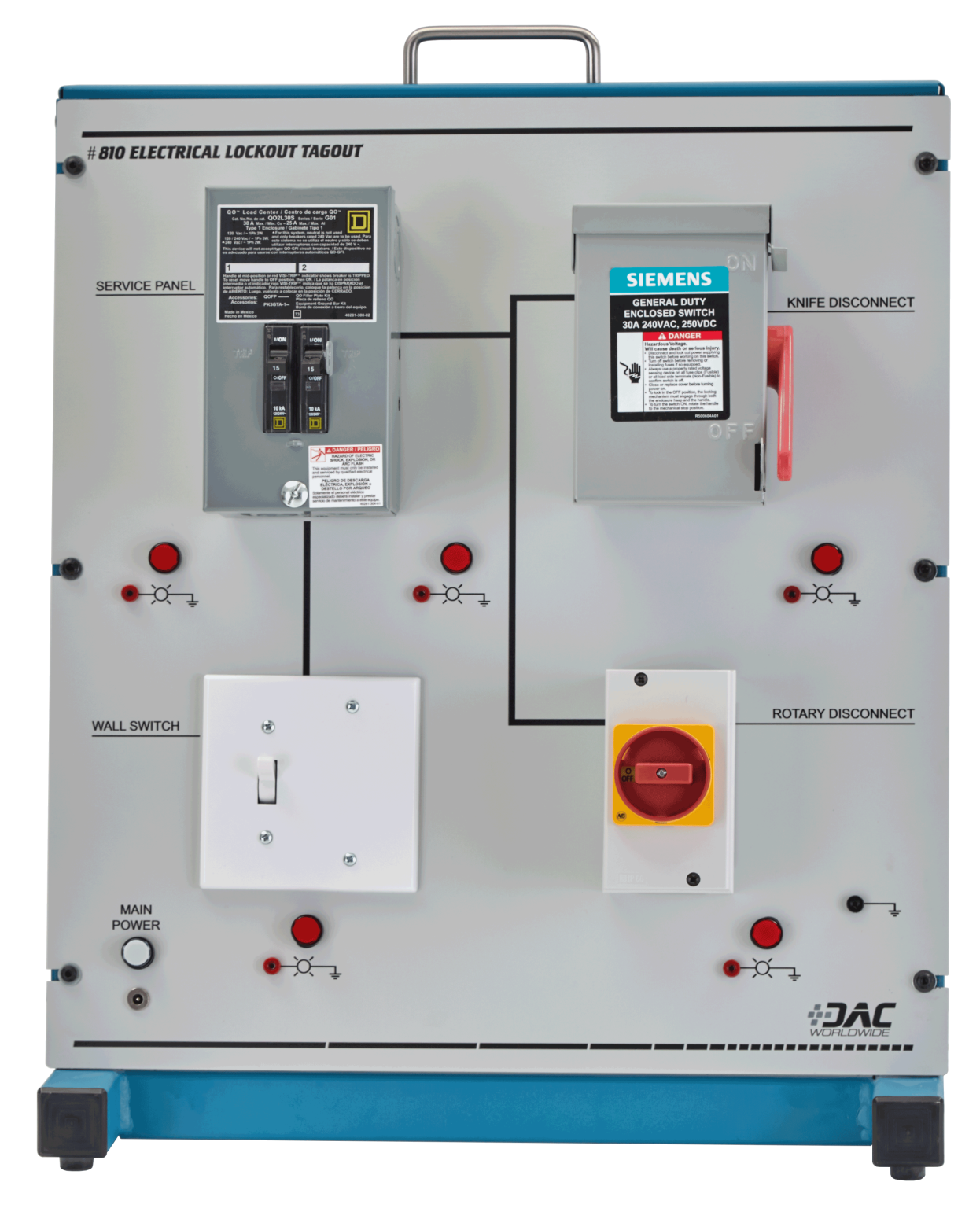

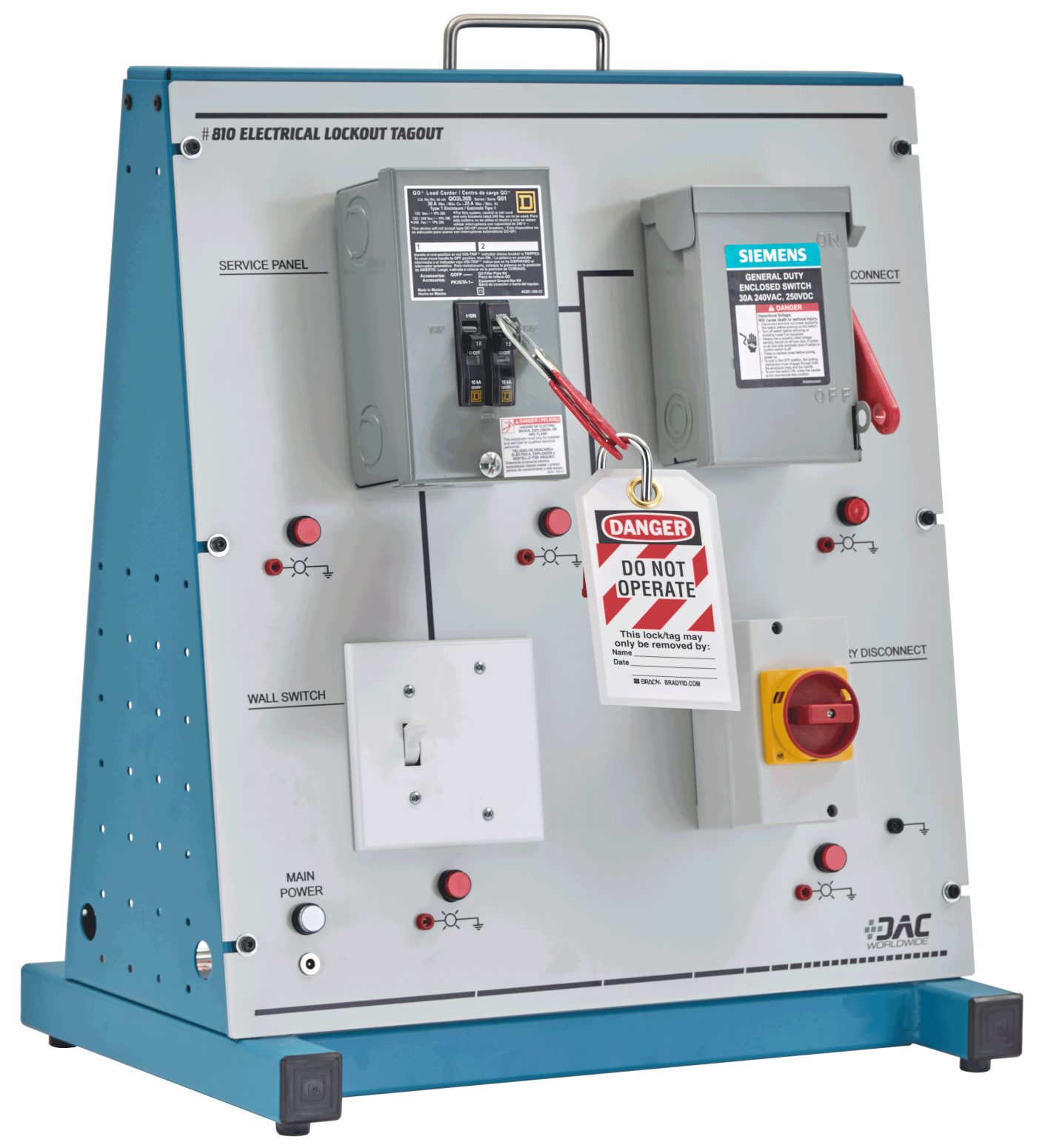

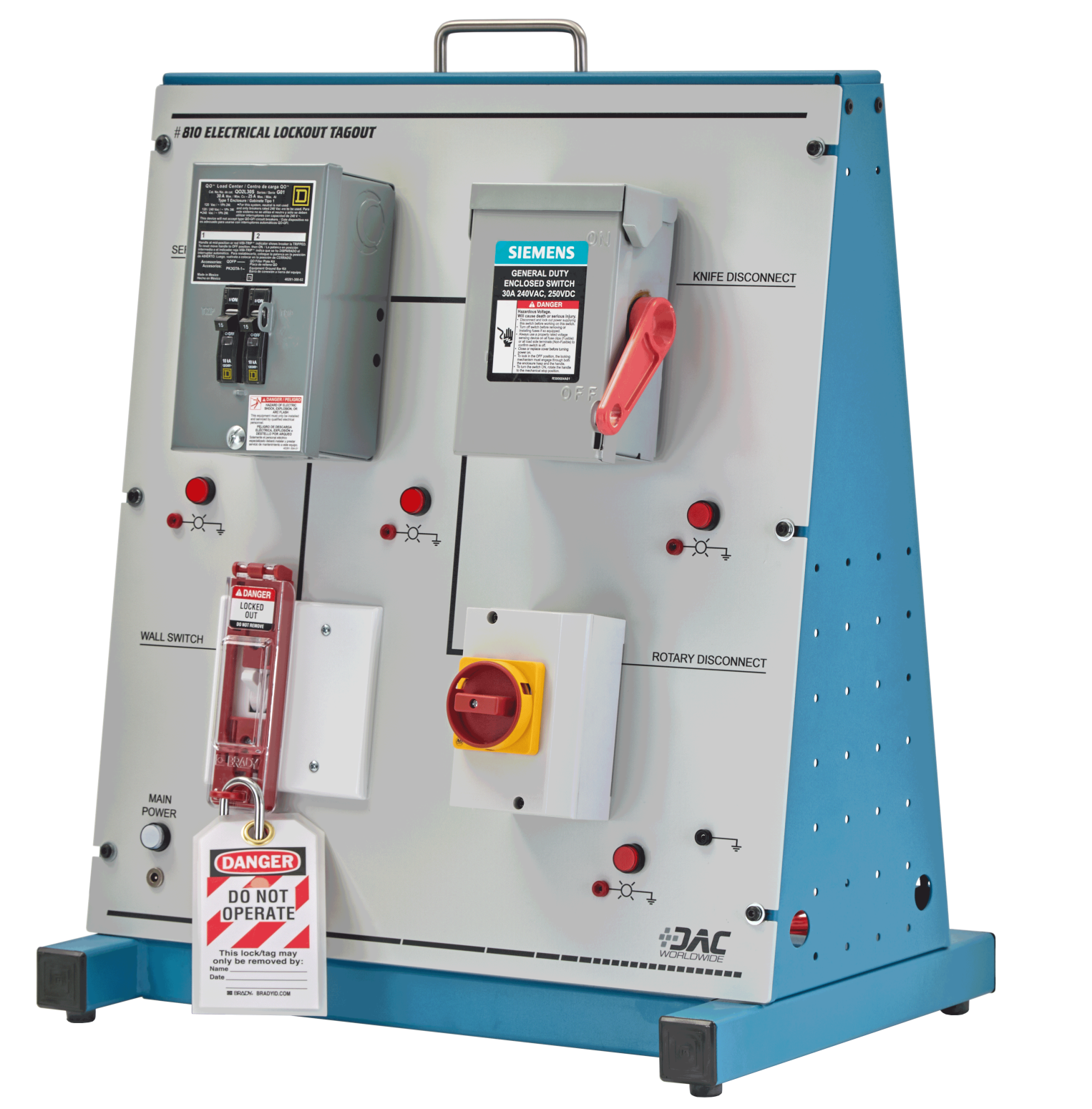

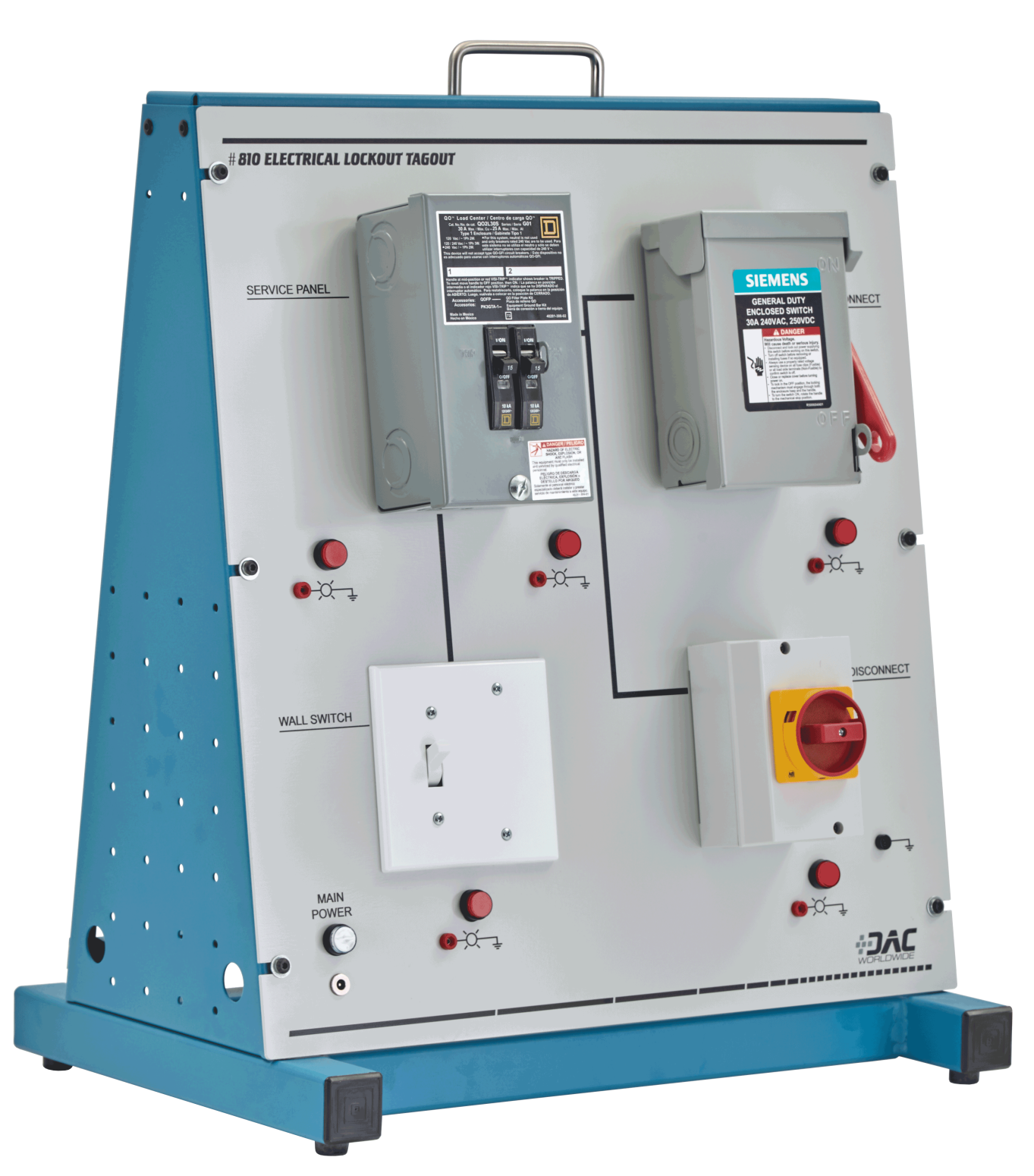

DAC Worldwide’s Electrical Lock-Out/Tag-Out Training System (810-000) provides a practical, hands-on approach to teaching these essential safety skills. This affordable, portable tabletop trainer is designed for use in industrial settings to teach the identification and lock-out of hazardous electrical energy sources, all while maintaining user safety with a reduced voltage of 24VDC.

Real-World Components for Authentic Training

This system features industry-standard components to simulate real-world lock-out/tag-out scenarios, including:

• Clamp-On Circuit Breaker Lock-Out (480/600V & 120/277V)
• Wall Switch Lock-Out
• Knife-Type Disconnect Switch
• IEC Rotary Safety Switch
• 3-in-1 Plug Lock-Out
• Universal Multipole Breaker Lock-Out
• Test Points and Indicator Lights

Additionally, a toolbox containing color-coded locks, tags, multi-lock hasps, and specialty electrical locking devices is provided for hands-on training.

Hands-On Skill Development with Detailed Use Guide

The included Use Guide offers step-by-step instructions for performing key lock-out/tag-out procedures. Students will learn to:

• Identify hazardous energy sources that require lock-out/tag-out.
• Use electrical lock-out/tag-out equipment effectively.
• Safely lock-out and remove lock-out devices from circuit breakers, disconnect switches, and branch circuit switches.

This structured approach allows for a safe and comprehensive understanding of LOTO procedures.

Features & Specifications

• Service requirements: 115V/60Hz/1-Ph
• Clamp-On Circuit Breaker Lock-Out (480/600V & 120/277V)
• Wall Switch Lock-Out
• Knife-Type Disconnect Switch
• IEC Rotary Safety Switch
• 3-in-1 Plug Lock-Out
• Universal Multipole Breaker Lock-Out
• Test Points and Indicator Lights
• Comprehensive Lock-Out/Tag-Out Tool Kit
• Color-coded locks, tags, and specialty electrical locking devices
• Portable tabletop design
• 24VDC operation for enhanced user safety

Product Dimensions & Options

The Electrical Lock-Out/Tag-Out Training System (810-000) is compact and portable, ideal for classroom and on-site training environments. For customization options or additional components, please contact us directly.

Ensure your team is fully prepared to handle electrical lock-out/tag-out procedures with confidence. The DAC Worldwide Electrical Lock-Out/Tag-Out Training System is an essential tool for any industrial training program.
