ASE L3 Trainer Light Duty Hybrid/Electric Vehicle Specialist

Automotive

Hybrid & Electric Vehicle Trainer

Prepare your students for the ASE L3 test!

CarTrain Hybrid & Electric Vehicles - ASE L3 Trainer

ASE L3 Trainer Light Duty Hybrid/Electric Vehicle Specialist

Prepare your Students for the ASE L3 Test!

All topics related to the New ASE L3 test are covered by Lucas-Nuelle's newest Hybrid/Electric vehicle trainer. We offer a blending of a comprehensive curriculum with practical tasks to make sure your students have the competencies and system understanding needed to succeed in this emerging, highly technical market. Allow your students to build confidence by knowing they can safely work on a state-of-the-art real-world system that performs the procedures needed for hybrid/electric vehicles.

There have been around 4 million hybrid and electric vehicles sold within the USA, and sales continue to increase rapidly. With this demand for new technology and highly complex vehicles, current and future technicians must be prepared for the challenge of diagnosing and repairing these vehicles.

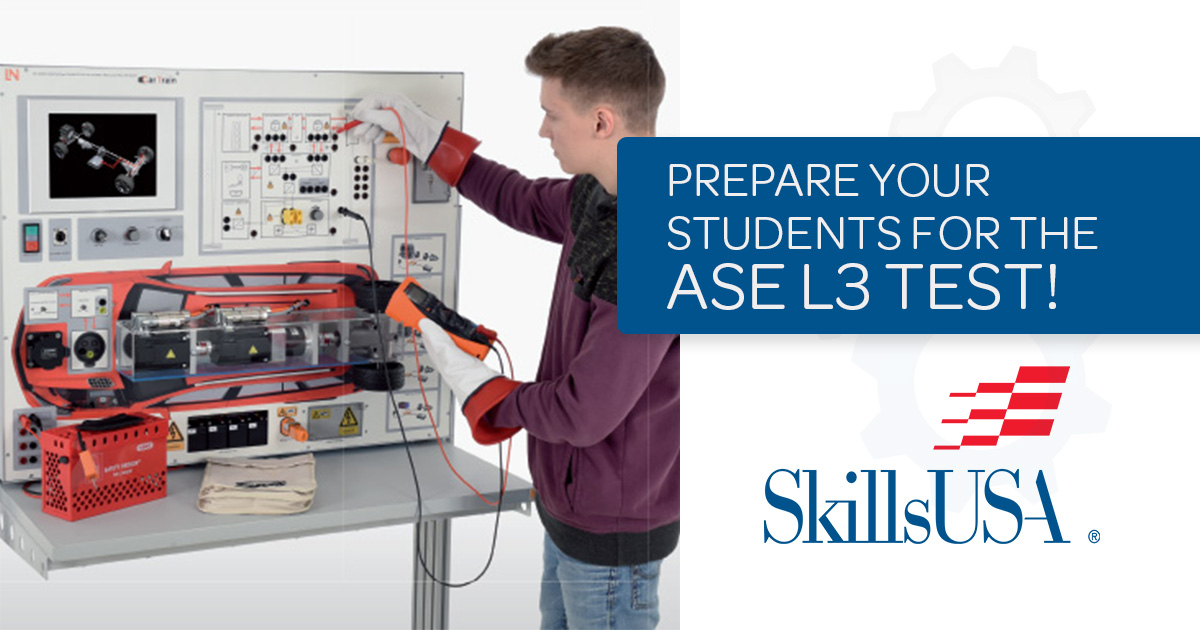

This trainer is one of the automotive challenges of the SkillsUSA. The students have to show their knowledge and diagnostic skills about hybrid and electric vehicles on our trainer, which is completely aligned with the ASE L3 curriculum.

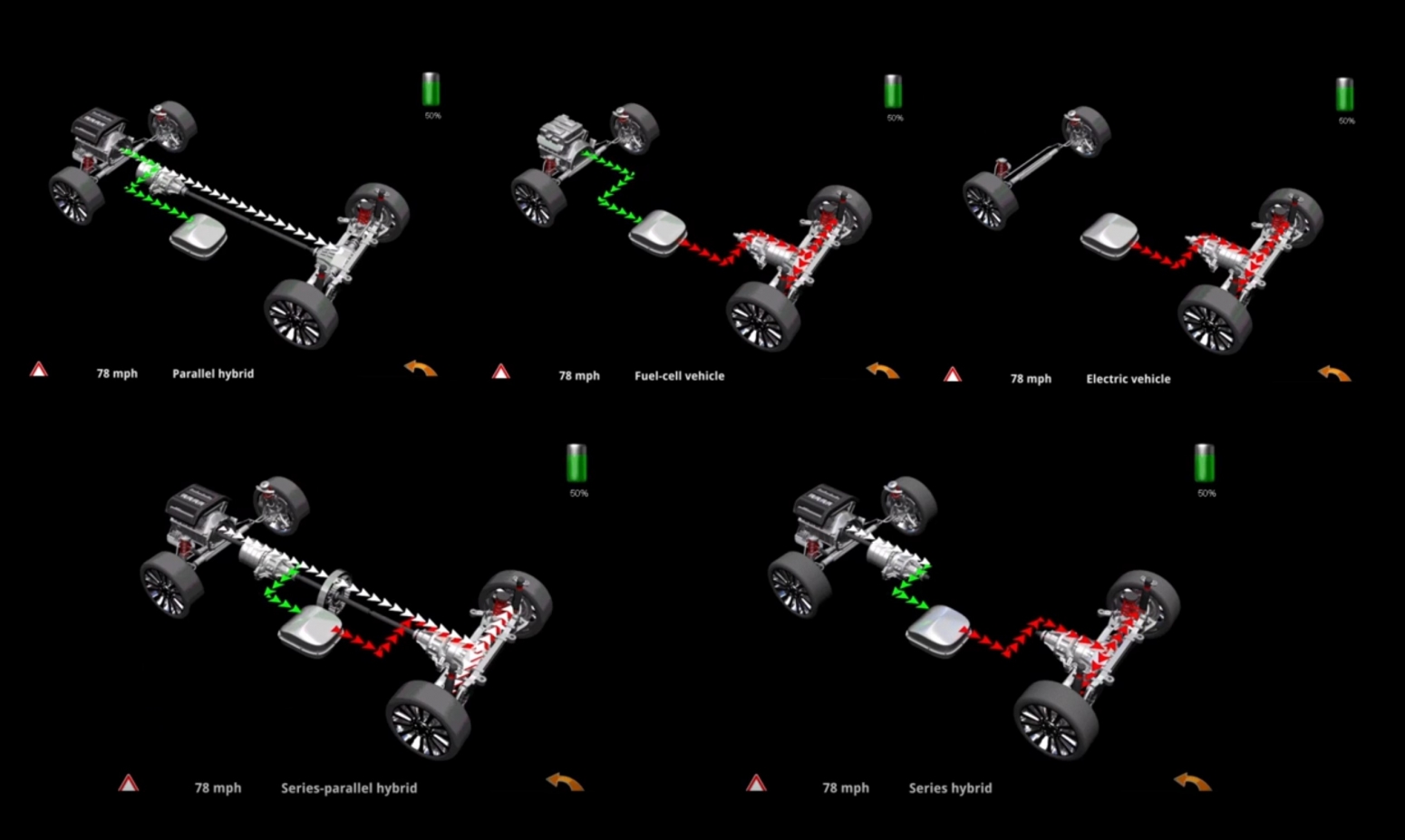

Teach 5 different drive types on one trainer by changing the overlay.

Parallel hybrid
Fuel-cell vehicle
Electric vehicle
Series-parelle. hybrid
Series hybrid

Benefits

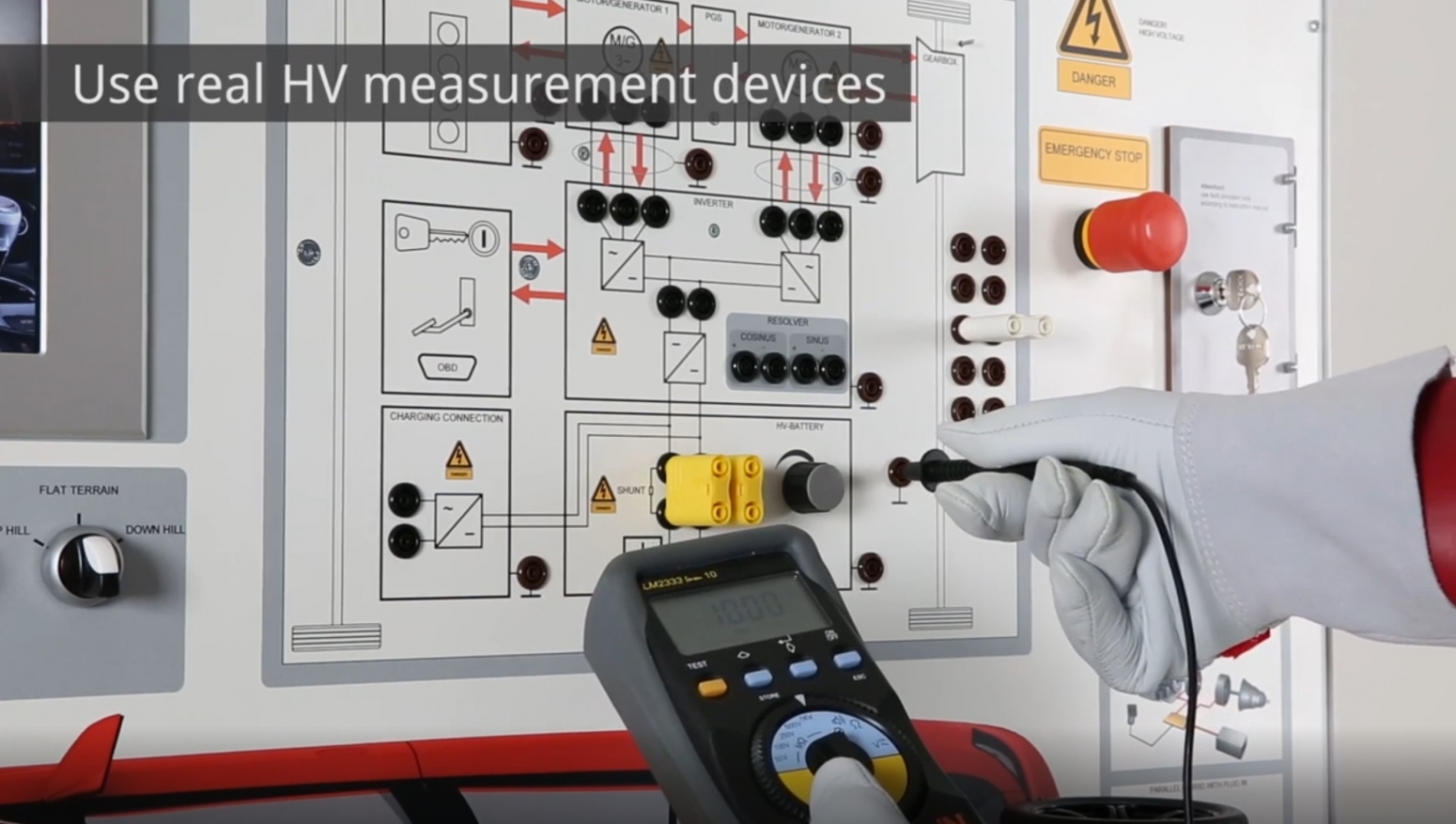

Use real HV measurement devices

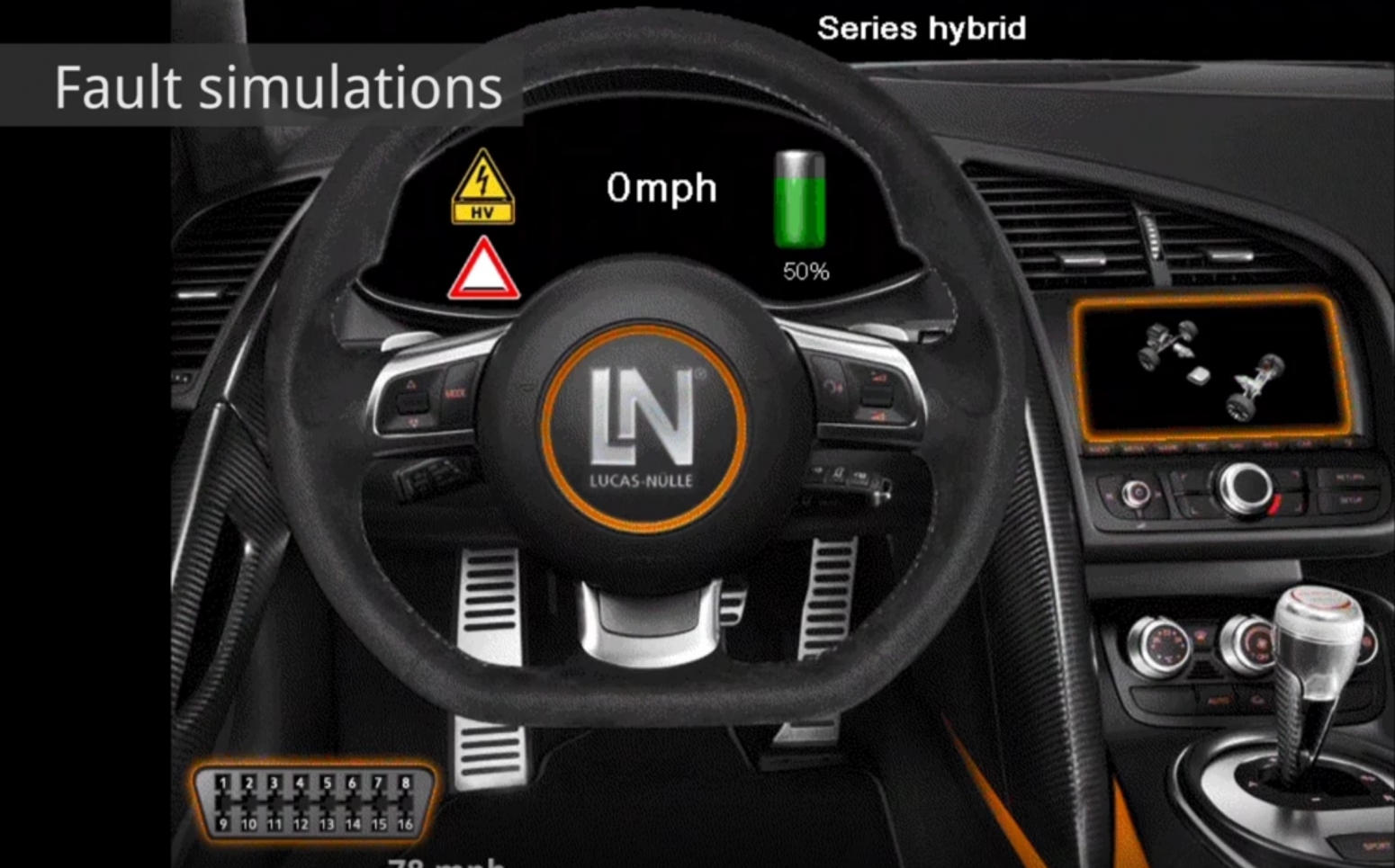

Fault simulations

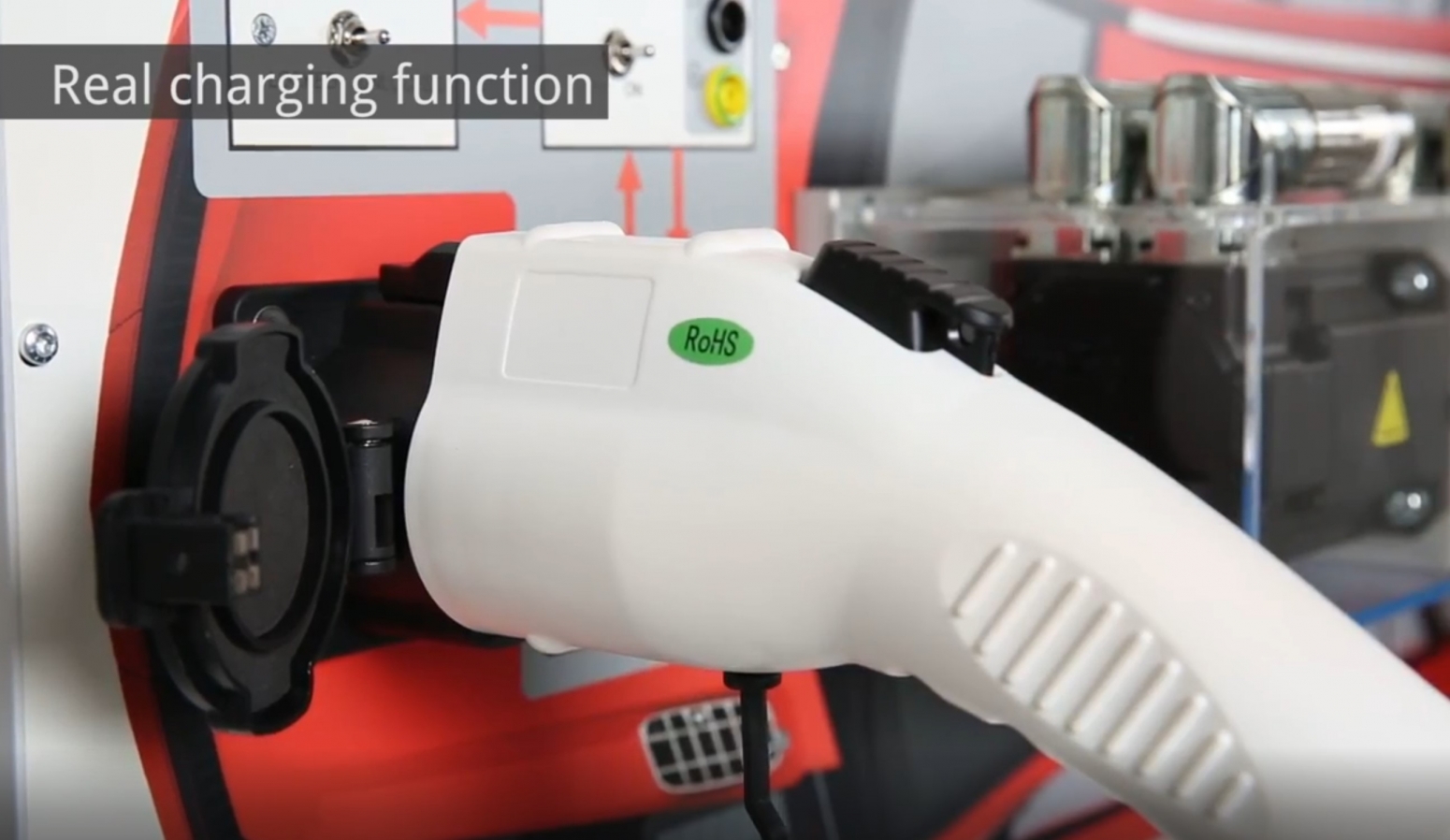

Real charging function

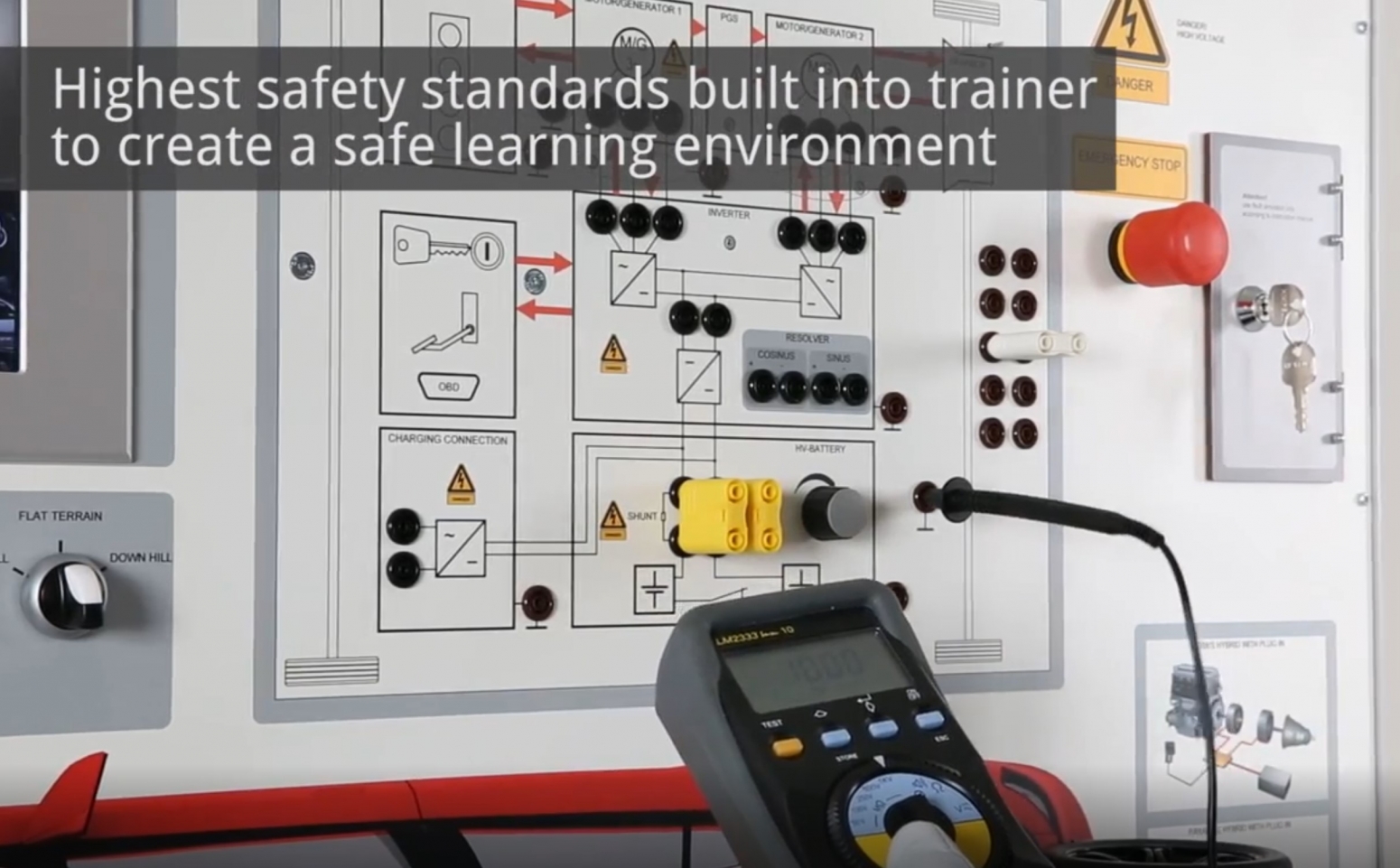

Highest safety standards built into trainer to create a safe learning environment

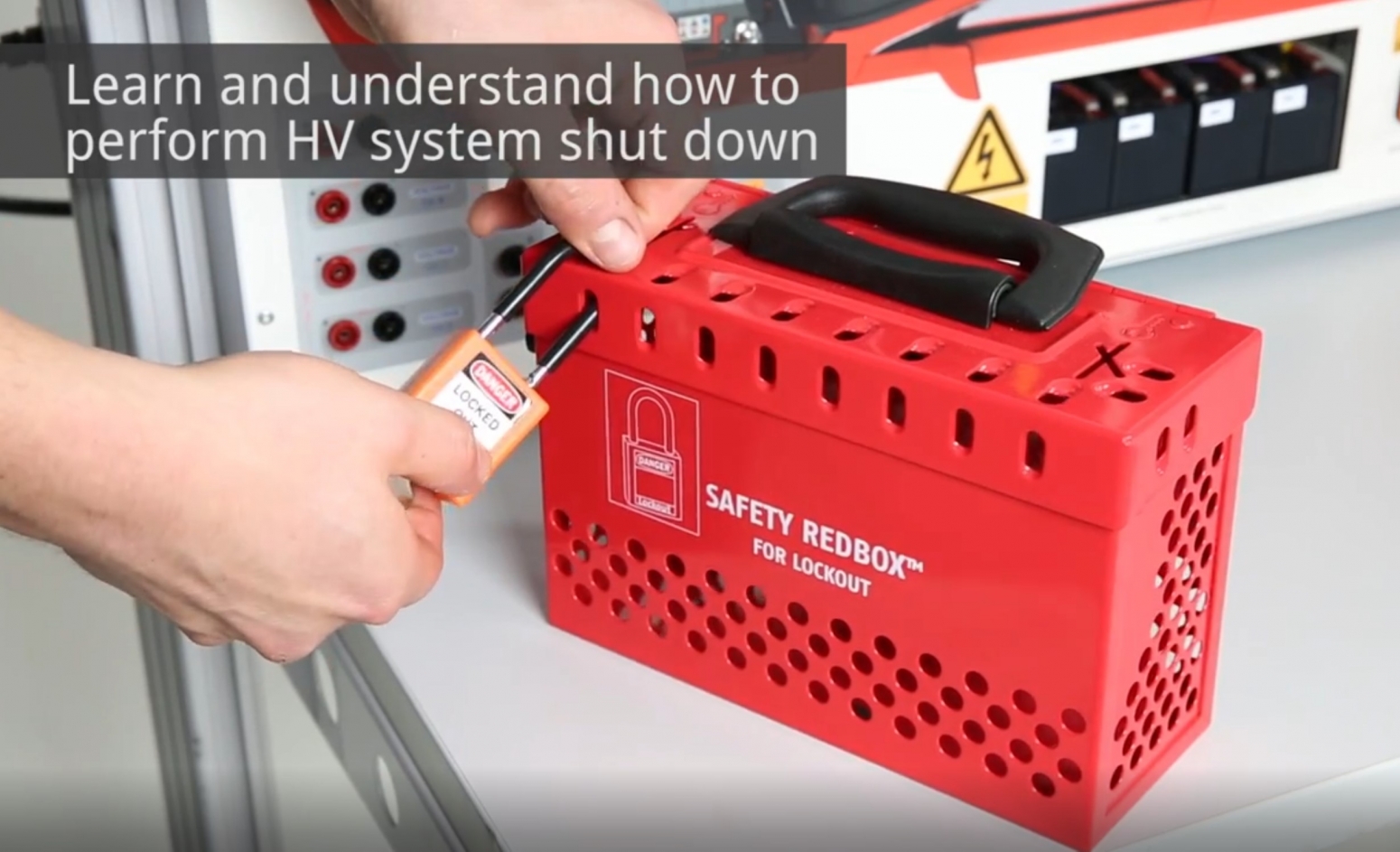

Learn and understand how to perform HV system shutdown
Occupational safety is an essential component of the training
And more!

Key Features

(Click to enlarge)

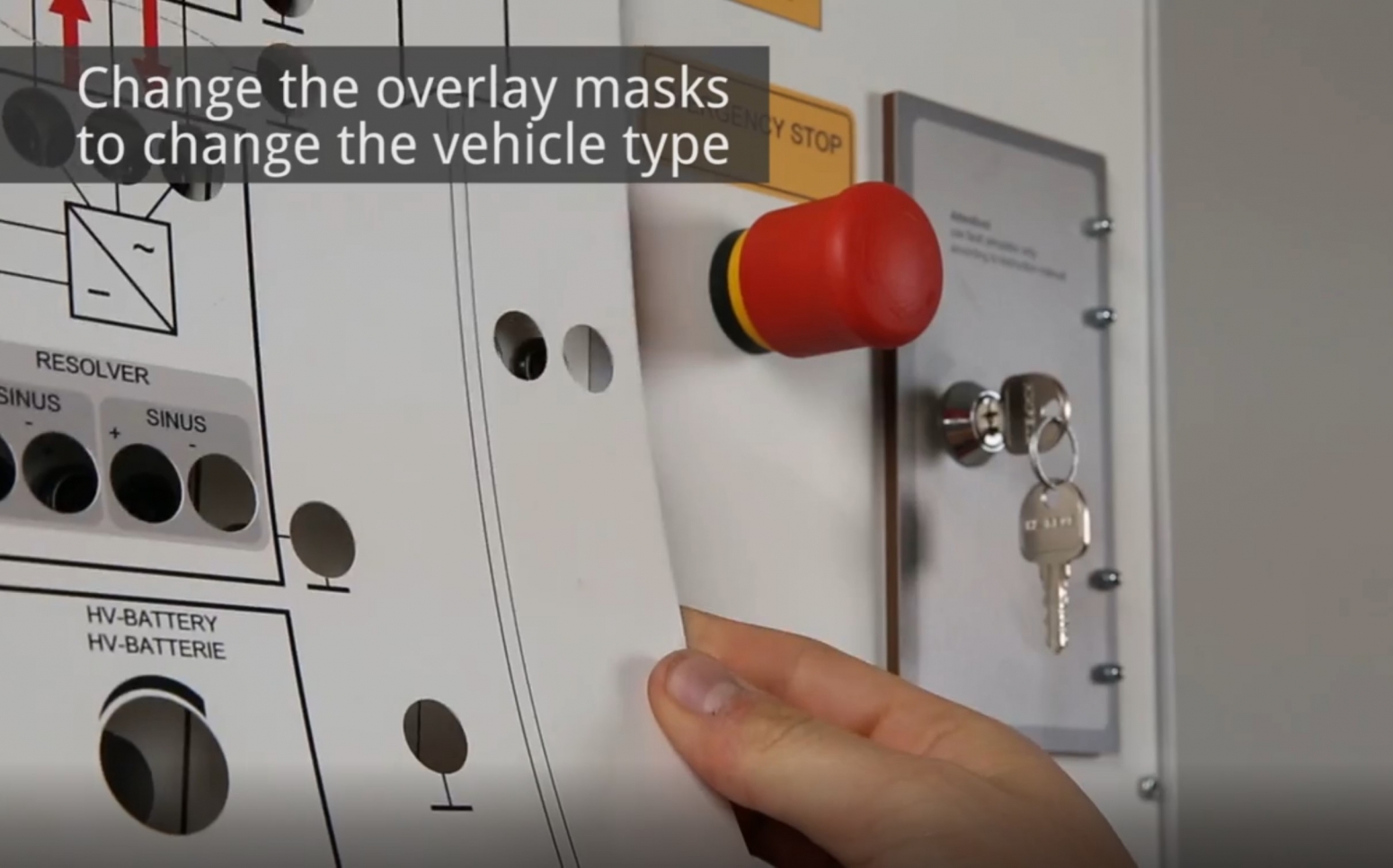

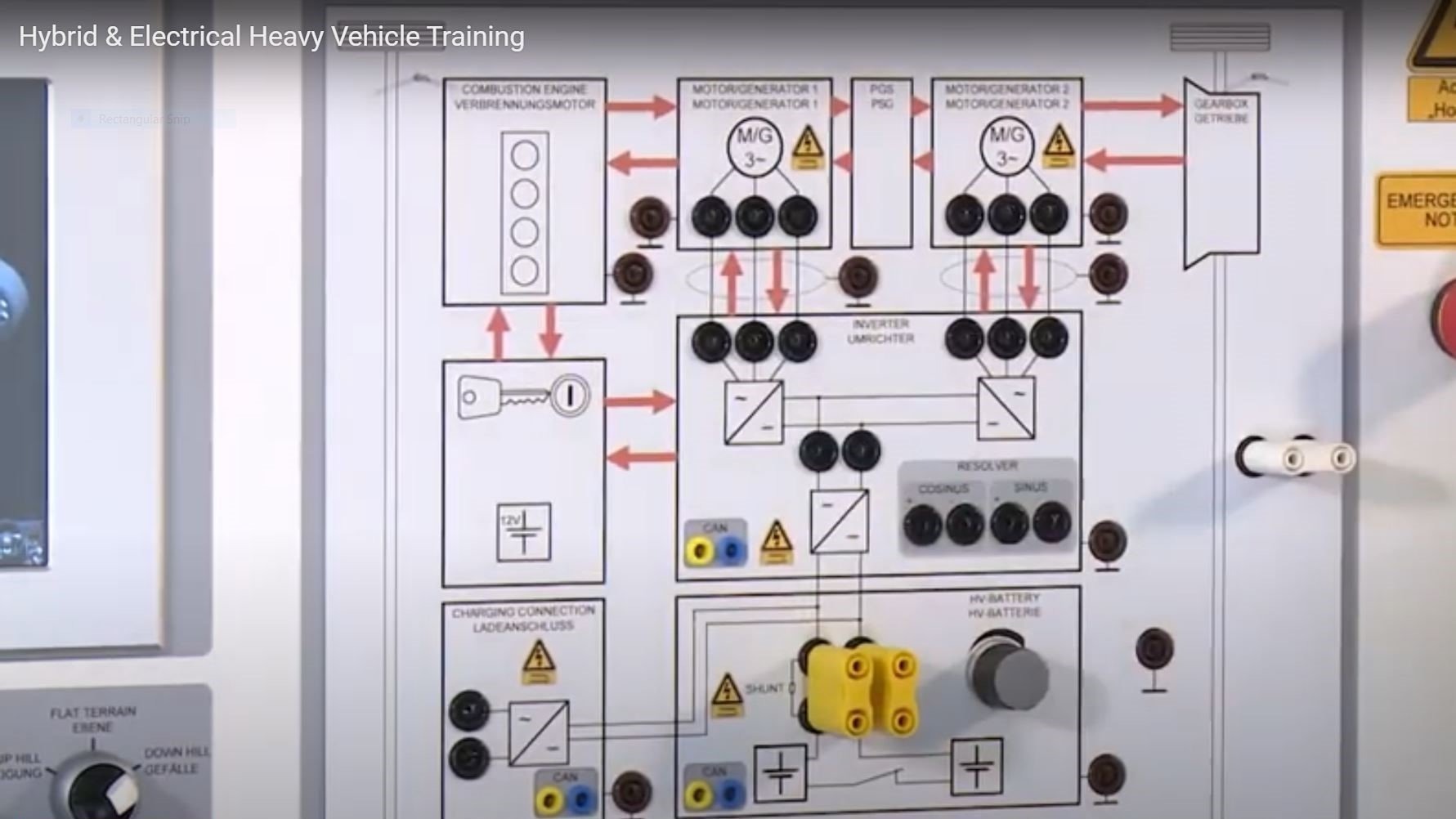

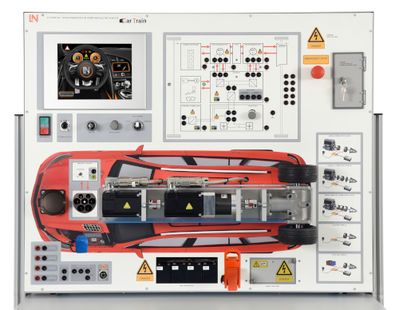

Changeable overlay masks customized to 5 different vehicles.

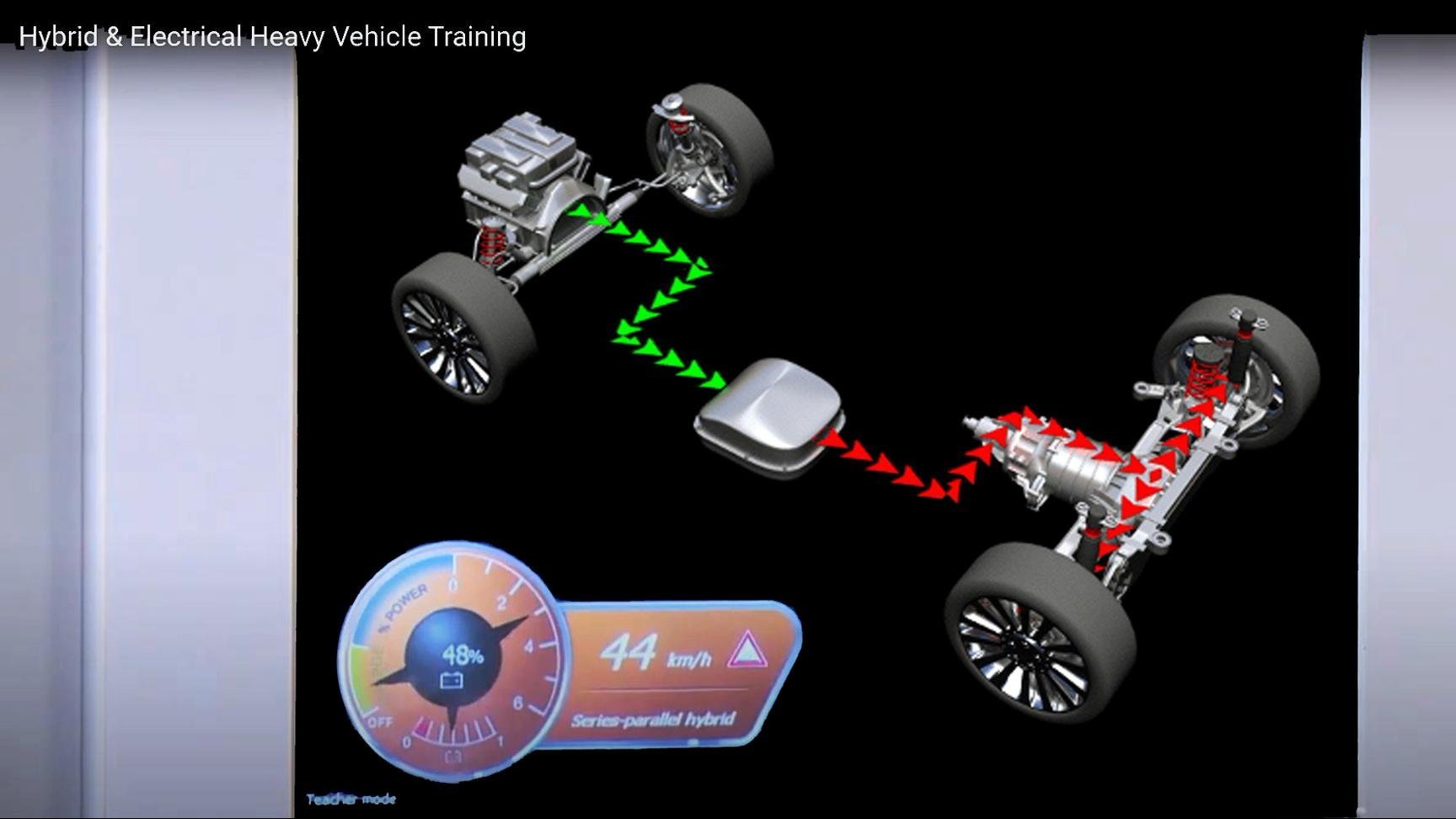

Touchscreen displays vehicle driving modes and energy flows.

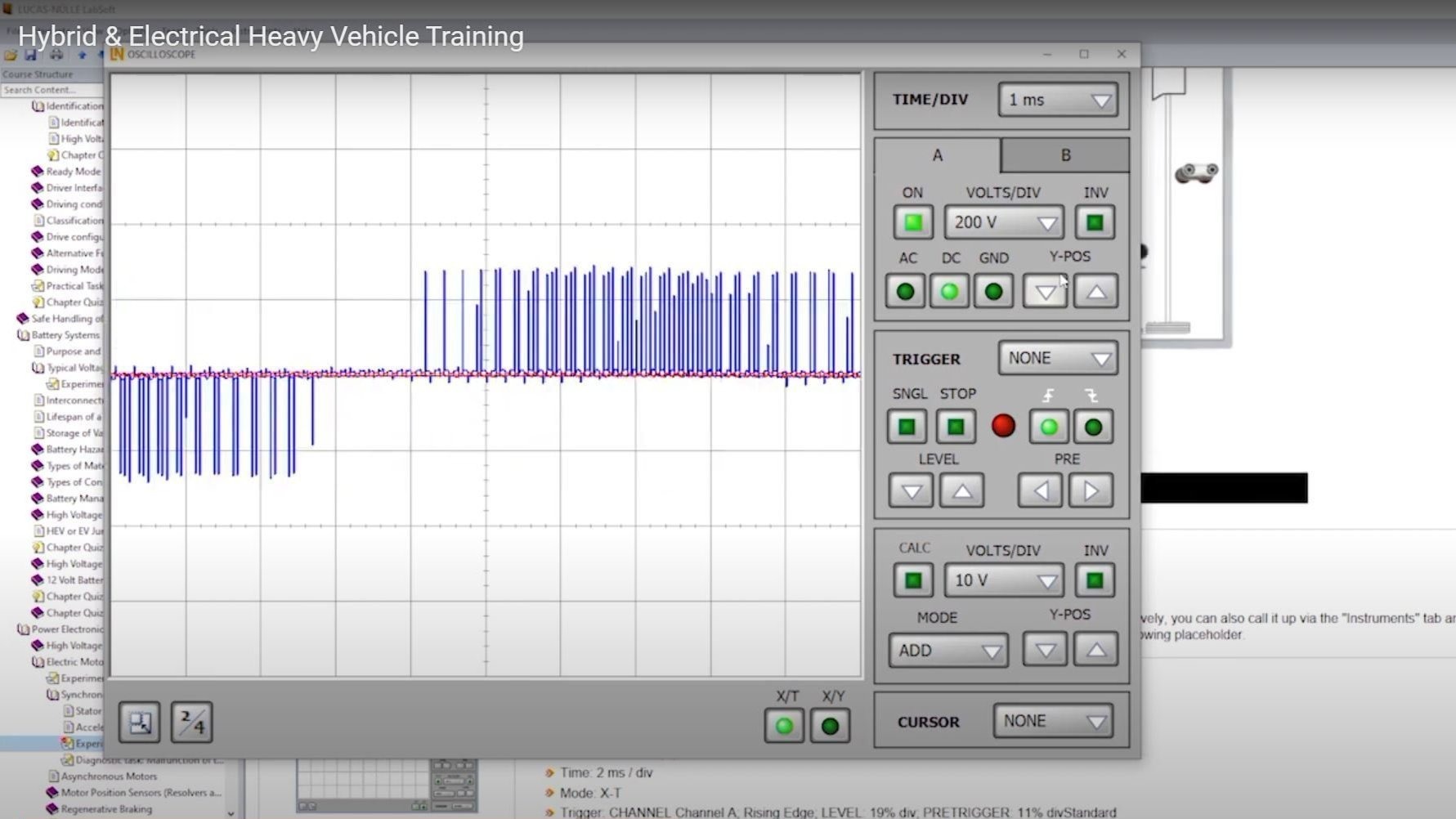

Virtual measurement equipment.

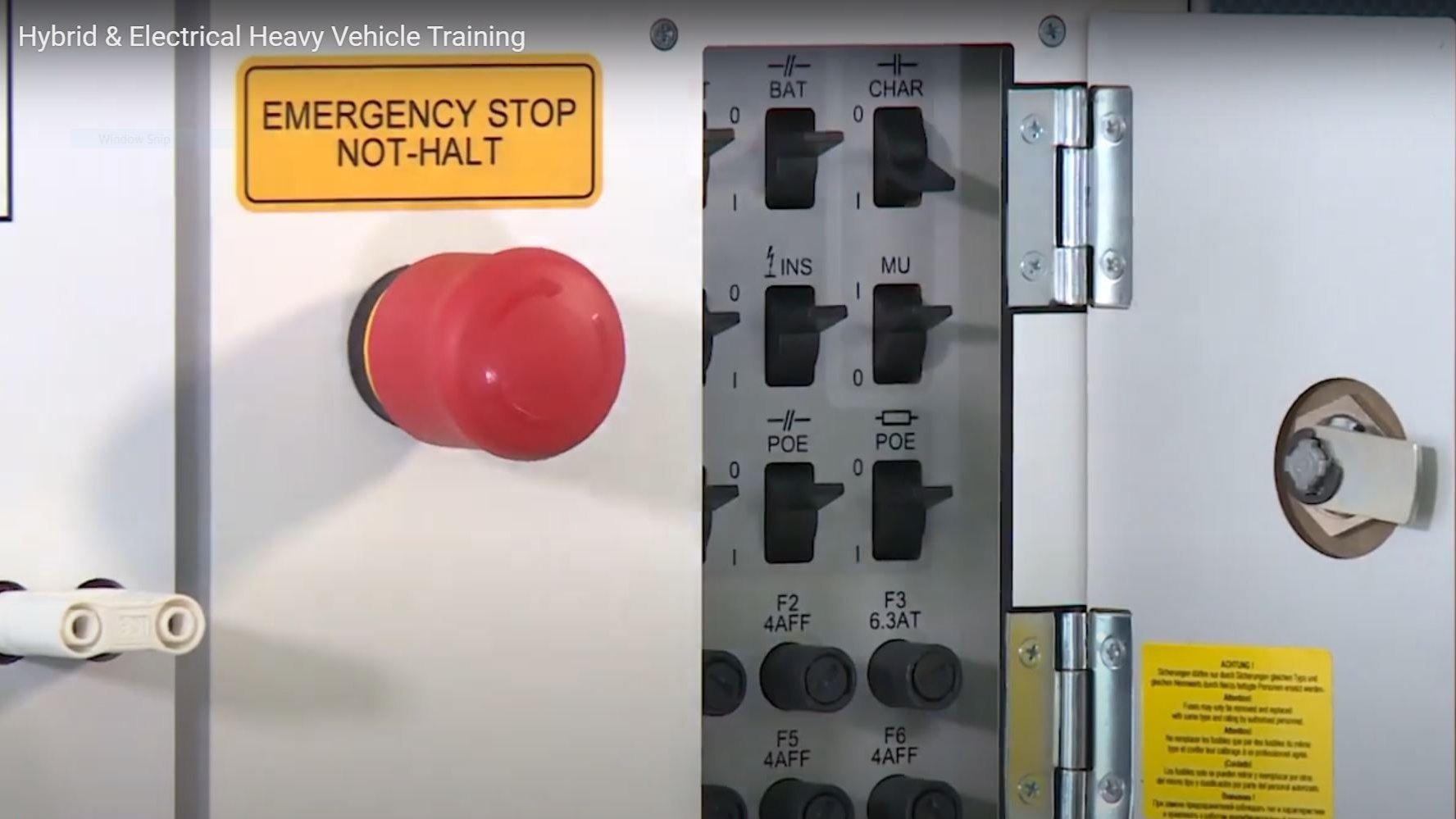

Instructor-controlled fault switches for student troubleshooting.

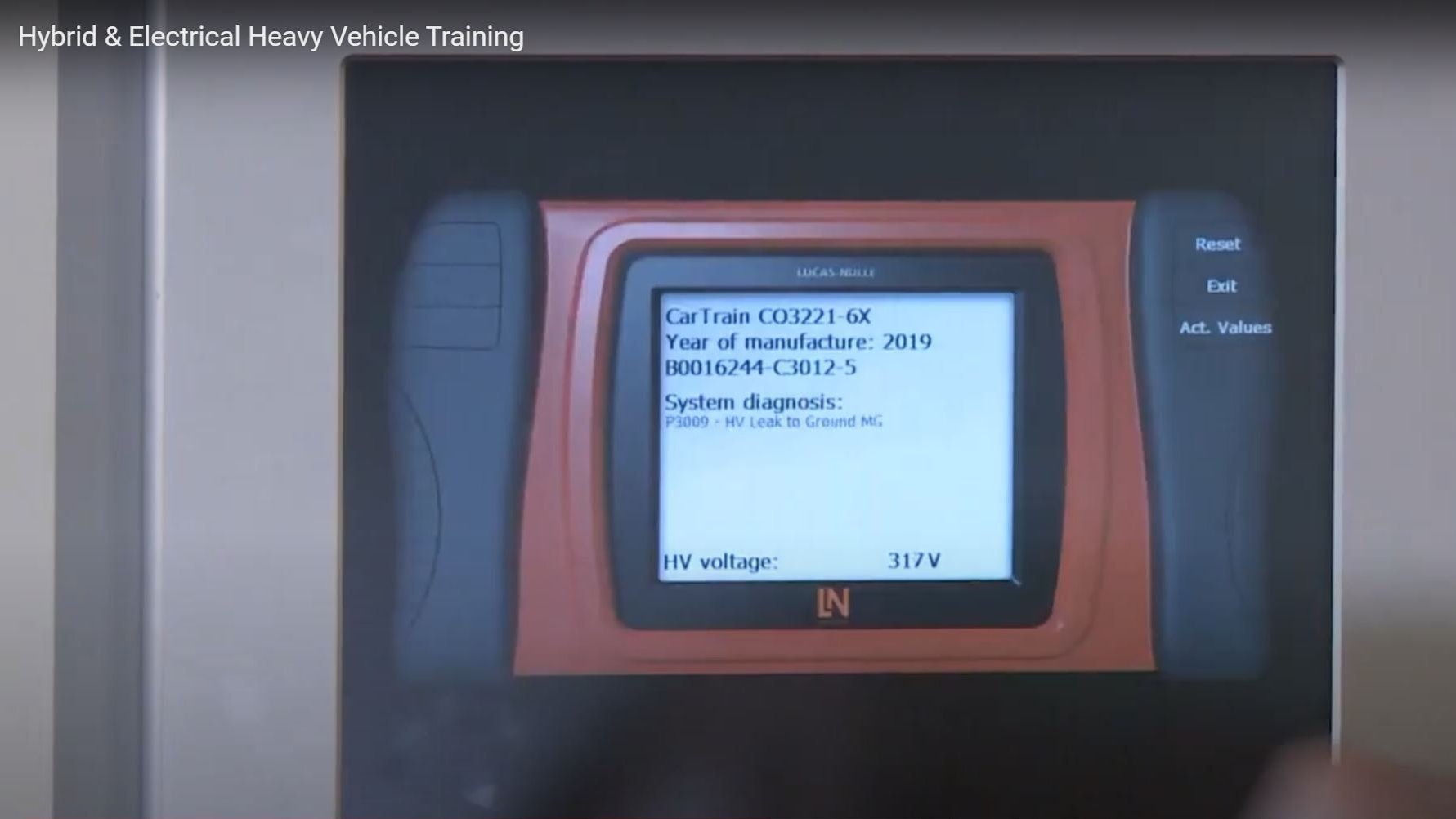

Integrated scan tool for diagnostic procedures and fault codes.

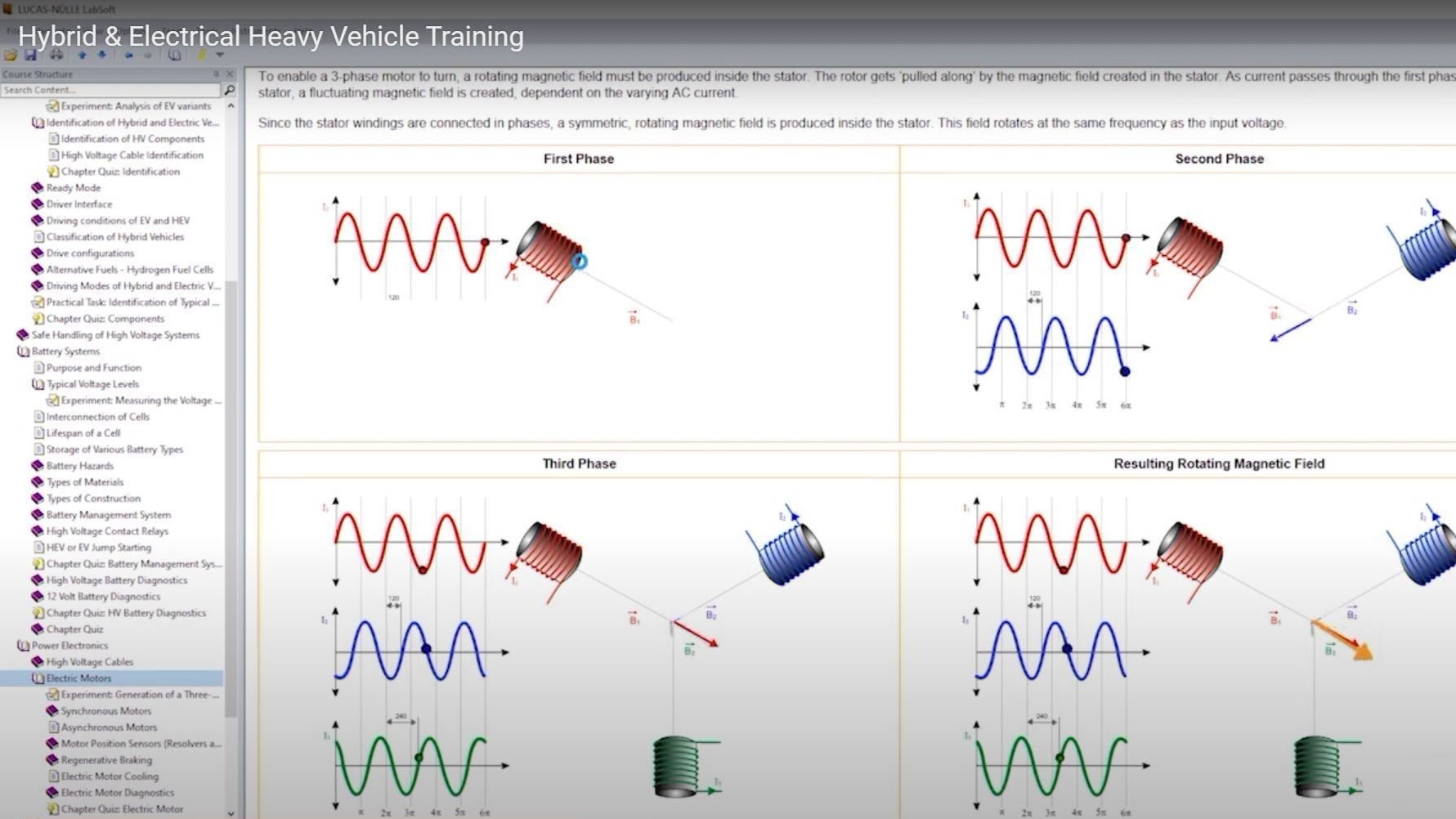

Labsoft blended eLearning curriculum with detailed animations.

Allow your students to build confidence by knowing they can safely work on a state-of-the-art real-world system that performs the procedures needed on hybrid/electric vehicles.

Topics included in the curriculum

Multiple types and operation of hybrid and electric vehicles
Motor/generator operation with experiments and animations
Battery management systems
Drive systems
Power electronics including inverters, DC to AC conversion and
Safe handling of HV systems
Internal combustion engines
Instructor Fault Insertion included for troubleshooting the system

Practical tasks and experiments include:

Isolation procedure and voltage measurement
Measurements of real high voltage to understand electric motors
Fault finding and diagnostics with real-world faults such as insulation resistance measurement
Resolver/motor positioner
Energy flows in series, parallel, series-parallel, fuel cell and pure electric vehicles
High voltage capacitors found in EVs
Charging connections
Integration of Tasks can even be done on existing vehicles if available

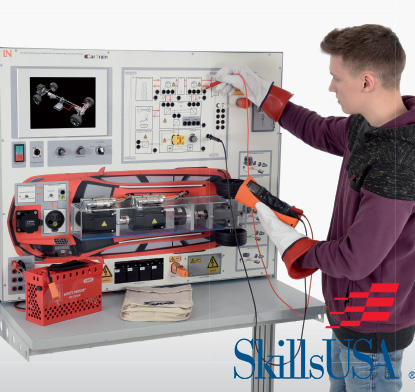

Hands-On Electric/Hybrid Vehicle Trainer

Frequently Asked Questions

(Click to learn the answer)

Why is this HEV/EV Trainer your best choice? Isn’t a “real” electric car a better way to learn? Why should I include HEV/EV in my program? What instruction areas does the LN HEV/EV Trainer address?

Why is this HEV/EV Trainer your best choice?

ASE L3 Certified - no other trainer is!
Career Readiness: : Students learn to diagnose and resolve real-world faults in (1) hybrid, (2) electric, and (3) fuel cell vehicles!
Student Safety: Students learn the proper procedures for SAFELY working on high voltage HEV/EV and fuel cell vehicles using low amperage which means that in no way can it cause any harm to students.
It's all REAL! But SAFE. There is no way the equipment can hurt the student, or the student can hurt the equipment!
- Real voltages (300V) - but only milliamps for safety!
- Real three-phase inverter
- Real electric motors/generators
- Real resolver
- Real charging socket
- Real fault test procedures
- Real orange HV cables
- Real diagnostic tester
- You get the idea! No simulations.
Complete ASE L3 aligned e-Learning curriculum with individual animations for each of the five drive trains, videos, and over 40 hands-on tasks! Never any subscription fees. Installs locally, on the intranet, or even on an LMS.
Students learn the most important task of the complete shutdown process using a real HV service plug, 12V battery terminals, HV measuring points, and even a real car key.

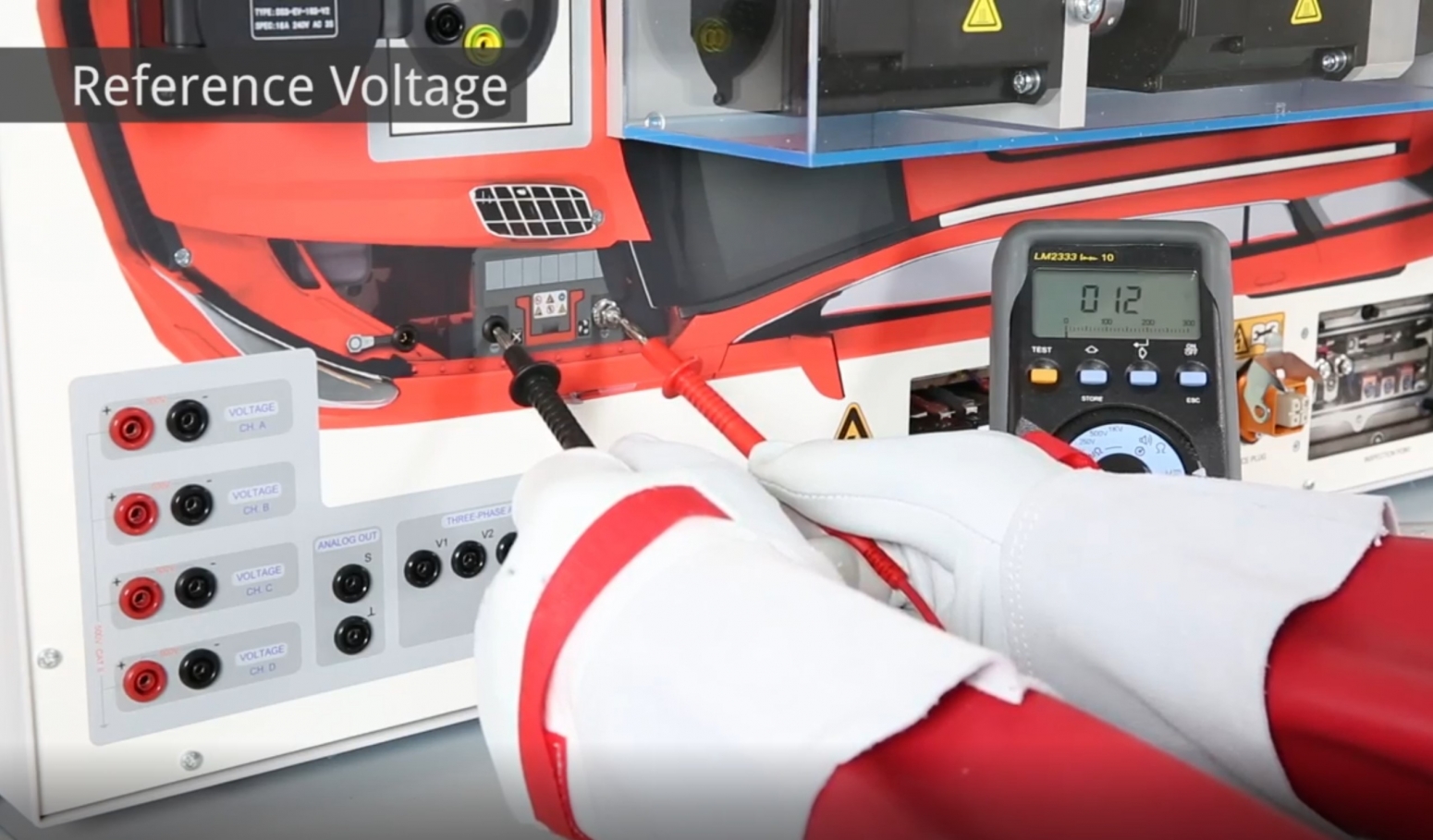

Students safely record real industry measurements using virtual measurement equipment (oscilloscope, ammeter, etc.) within the curriculum that easily connects via USB or Wi-Fi to the trainer. No expensive additional equipment is needed!

Isn't a "real" electric car a better way to learn?

Definitely NOT!

The #1 reason is SAFETY. The LN HEV/EV trainer allows students to gain confidence conducting real fault-finding training without putting themselves and others at risk from a high-voltage system. Once properly trained, your students will be able to confidently work safely on hybrid, electric, and fuel cell vehicles!

Another reason is that this trainer is flexible and designed to be used repeatedly without breaking down/setting-up equipment. Real vehicles, and even some other EV trainers, require lots of manual prep work. You would also be required to manipulate the system in order to put faults into it, risking total failure of the system and even thermal runaway of a cell in the HV battery.

Why should I include HEV/EV in my program?

Electric vehicles may not be in your future, but they WILL be in your students'! With over 10 million electric cars on the world's roads and growing, auto tech programs would be doing a disservice if they allowed students to leave their program without HEV/EV training.

What instruction areas does the LN HEV/EV Trainer address?

Multiple types and operation of hybrid and electric vehicles
Motor/generator operation with experiments and animations
Battery management systems
Drive systems
Power electronics including inverters, DC to AC conversion and safe handling of HV systems
Operating principle for interlock contacts
Instructor Fault Insertion for trouble-shooting the system including traction battery, inverter, motor/generator, insulation, shielding of HV cables and equipotential bonding.
