EDUMiLL

Advanced Manufacturing
CNC & Robotics
Item Number:
EDU-MiLL
All-in-one CNC Machine & 3D Printer
Levil Technology
CNC Educational Tool
CNC Training Equipment
EDUMiLL | Levil Technology
CNC Mill | EDUMiLL

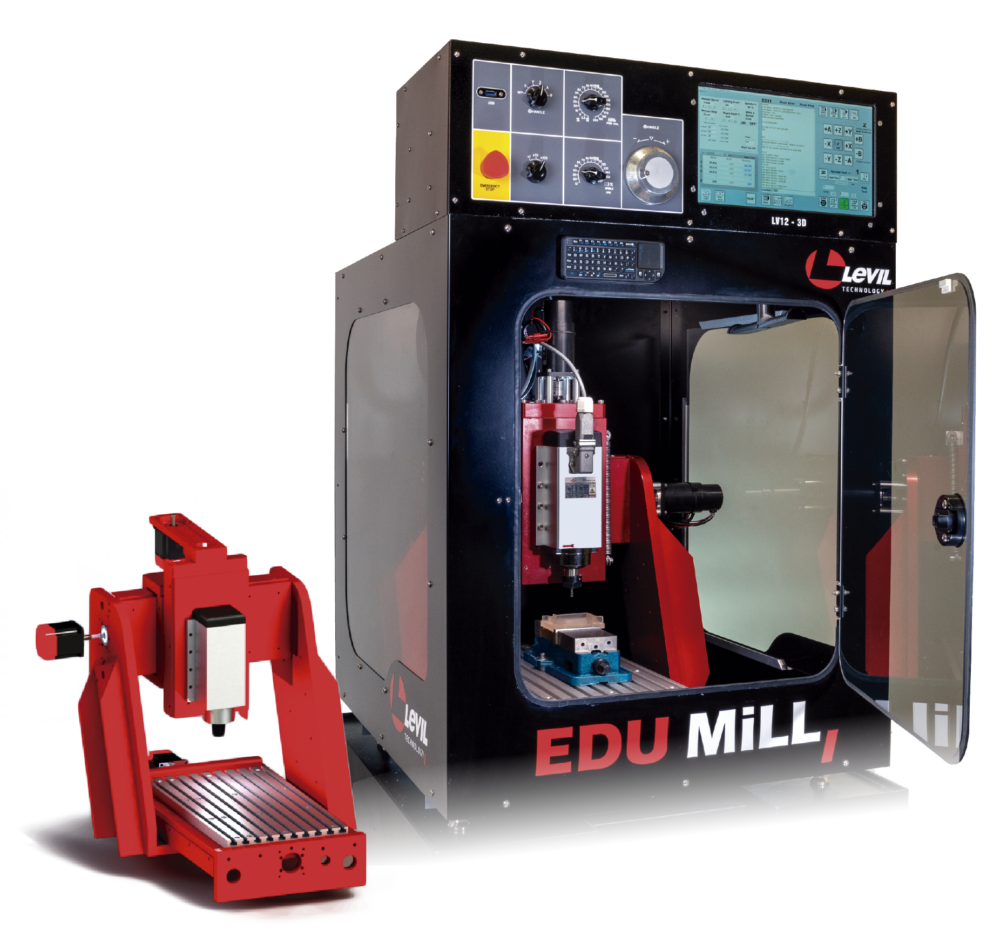

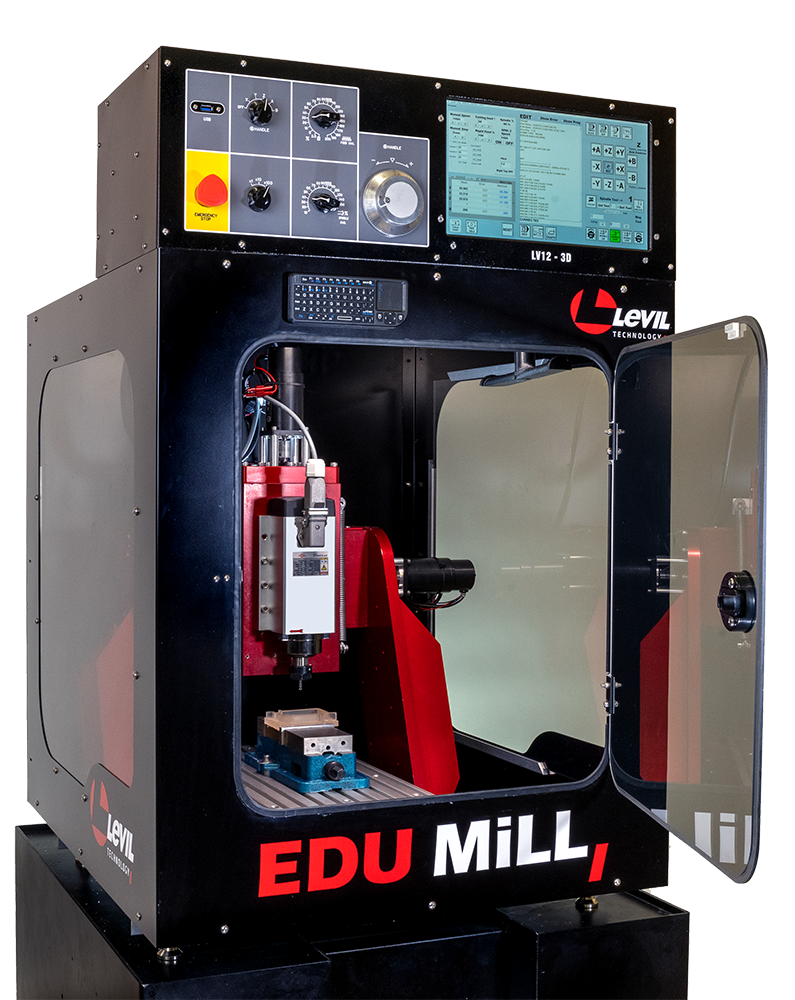

The EDUMiLL is a revolutionary system that incorporates technologies from the additive and subtractive manufacturing fields to open the door to a new realm of possibilities and further innovation by making it affordable to include a 3D printer and a robust CNC mill in one package.

Control Options: Levil or FANUC

Features

  • Operating an asynchronous machine and recording its characteristic parameters
  • Calculating parameters for compensation capacitors
  • Compensation using various capacitors
  • Determining stage power
  • Manual compensation of reactive power
  • Automatic identification of a reactive power controller‘s connections
  • Automatic compensation of reactive power

Specifications

  • Travel X/Y/Z: 7/10.5/5”
  • Worktable Size: 16.8 X 9.8”
  • Rapid Feed: 400Ipm
  • Cutting Feed: 240Ipm
  • Accuracy: 0.0004”
  • Dimensions: 27.5" W x 33.5" D x 41.5" H - Fits Through A Standard Doorway
  • Weight 300 Lbs.
  • Power 110-220 VAC, 15 A
  • Aluminum Body & Base / Steel Enclosure
  • Large door for easy access to machining area
  • Large side windows to monitor machining processes

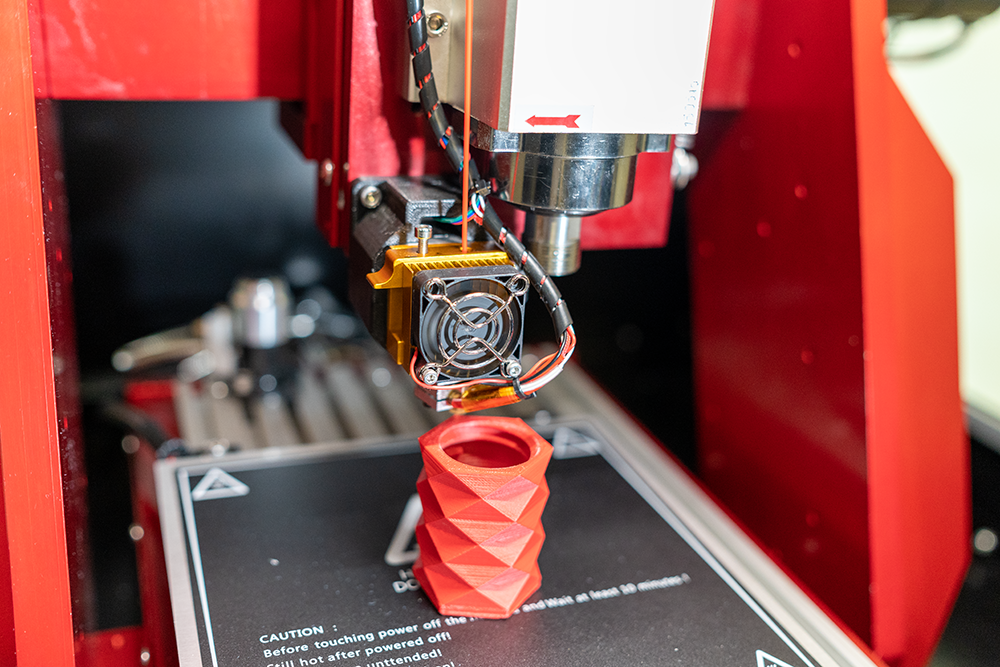

3D Printer

  • Printing process: Fused Deposition Modeling (FDM)
  • Build Volume: 6.3" x 7.8" x 4.7"
  • Extruder System: Direct drive
  • Building Plate: Heated table 8.6" x 8.6"
  • Material Storage: Sealed within machine enclosure
  • Materials: PLA, ABS, PETG. More being tested
  • Layer Resolution: 20–400 microns

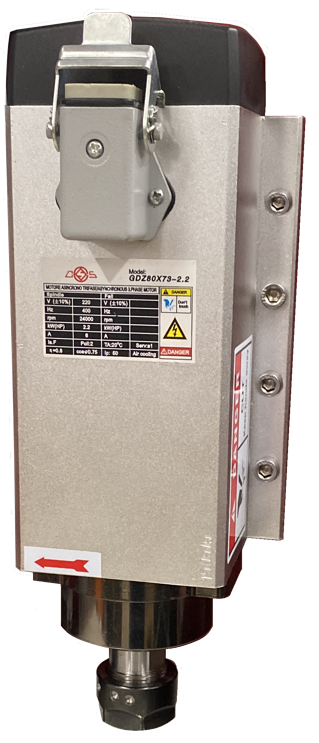

Spindle

  • 2.2 Kw
  • 24,000 Rpm
  • ER-20 Taper
  • Air Cooled
  • Ceramic Bearings
  • Runout < 0.0004”
  • 220 Vac, 6 A

More Information

Visit Levil for more information.
Manufacturer:
Levil Technology

Request Information

Videos:

EDU MiLL By Levil Technology All-in-one CNC Machine & 3D Printer

The EDUMiLL, developed by Levil Technology, represents a groundbreaking system that merges additive and subtractive manufacturing technologies, heralding a new era of possibilities and enhanced innovation. By combining a 3D printer with a sturdy CNC mill within a single package at an affordable price point, this system opens doors for diverse applications.

Levil Technology EDU-MiLL Full Demo

The EDUMiLL is a revolutionary system that incorporates technologies from the additive and subtractive manufacturing fields to open the door to a new world of possibilities and further innovation by making it affordable to include a 3D printer and a robust CNC mill in one package
