Floating Head Bulk Storage Tank Model

Item Number:

295-202

Hands-On Oil Production Technical Trainer

DAC Worldwide's Floating Head Bulk Storage Tank Model (295-202) is a highly-detailed scale model of a common floating head storage tank, as used in refineries, petrochemical plants, and other processing, production, and storage applications.

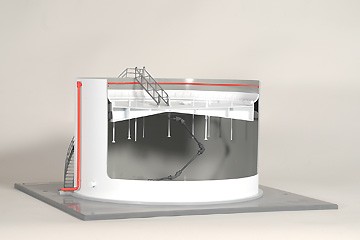

This model reflects common designs and is a complete, to-scale replication. The primary shell includes a cutaway, allowing for all internal features to be seen. The product supports orientation, operations, and maintenance training programs relating to the refining as well as the oil and gas industry.

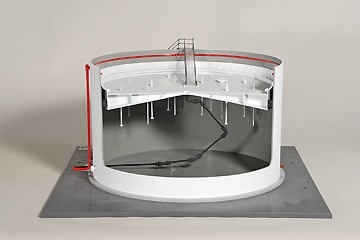

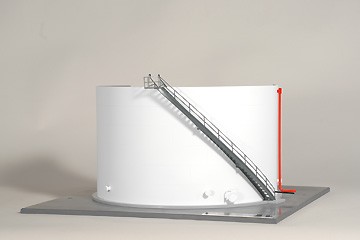

The model features exact "to-scale" construction throughout with a 15" primary tank diameter and a representative concrete foundation. Exterior detail includes access stairs, process connections, manways, plate detail, and access platform. Interior detail includes representative, articulated roof drain system; fire protection/supression system; vents; primary and secondary roof seals, with detail; and drain/sump.

The model is painted using a high-durability coating. It comes mounted on a durable PVC baseplate.

Features & Specifications

Exact "to-scale" construction throughout; 15-in. primary tank diameter
Representative concrete foundation
Exterior detail including access stairs, process connections, manways, plate detail, and access platform
Interior detail including; representative, articulated roof drain system, fire protection/supression system, vents, primary and secondary roof seals, with detail, and drain/sump
Durable PVC baseplate
Painting using a high-durability coating
