Rely on the F900’s to achieve real manufacturing with 3D printing. Its large build volume and proven accuracy provide consistent results needed to meet production demand. A diverse material selection ranging from engineering-grade thermoplastics to high-performance polymers lets you cover a varied range of applications.
The Stratasys F900™ is the most precise and powerful FDM® system available. With the largest build size of any Fortus® system, the Stratasys F900 is designed to handle the most demanding manufacturing needs. The accuracy, repeatability, and predictability are unmatched, and the control software leverages the system’s hardware to deliver superior throughput and reliability.
With the largest selection of materials of any FDM system, the F900 is made for versatility. Our materials range from standard to high-performance, allowing you to meet your application needs.
The Stratasys F900 uses engineering-grade thermoplastics to build robust production parts, jigs, fixtures, factory tooling, and functional prototypes. Large parts are printed fast with slice heights up to 0.020 inches to help meet production demands with ease. The Stratasys F900 offers a streamlined workflow and easier job monitoring with an internal camera, GrabCAD Print™ software, Insight™, and MTConnect readiness.
36 x 24 x 36 in
0.020 in: ASA, ULTEM 1010; 0.013 in: ASA, ABS-M30, ABS-M30i, PC-ABS, PC-ISO, PC, ULTEM 9085, ULTEM 1010, Nylon 12, Nylon 6, ST-130; 0.010 in: ASA, ABS-M30, ABS-M30i, ABS-ESD7, PC-ABS, PC-ISO, PC, ULTEM 9085, ULTEM 1010, PPSF, Nylon 12, Nylon 6, Nylon 12CF; 0.007 in: ASA, ABS-M30, ABS-M30i, ABS-ESD7, PC-ABS, PC-ISO, PC, Nylon 12 0.005 in: ASA
Parts are produced within an accuracy of +/- .089 mm or +/- .0015 mm per mm whichever is greater (+/- .0035 in. or +/-.0015 in. per in. whichever is greater).+ Z part accuracy includes an additional tolerance of -0.000/+ slice height. Note: Accuracy is geometry-dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield. See Fortus 900mc accuracy white paper for more information.
Two bays each for material and support canisters (92 in3); auto changeover between canisters
Microsoft Windows 8.1 and Windows 8 (Pro, Enterprise), Microsoft Windows 7 (Pro, Enterprise, Ultimate), Microsoft Windows Vista (Business, Enterprise, Ultimate), Microsoft Windows Server 2008, Microsoft Windows Server 2003
10/100 base T connection. Ethernet protocol.
230 VAC (three phase) 50/60Hz, voltage fluctuation +/- Current 40A
Maximum room temperature of 29 °C (85 °F). Maximum room humidity of 80%.
Compressed Air Required 90-120 psi with a minimum flow of 20 CFM

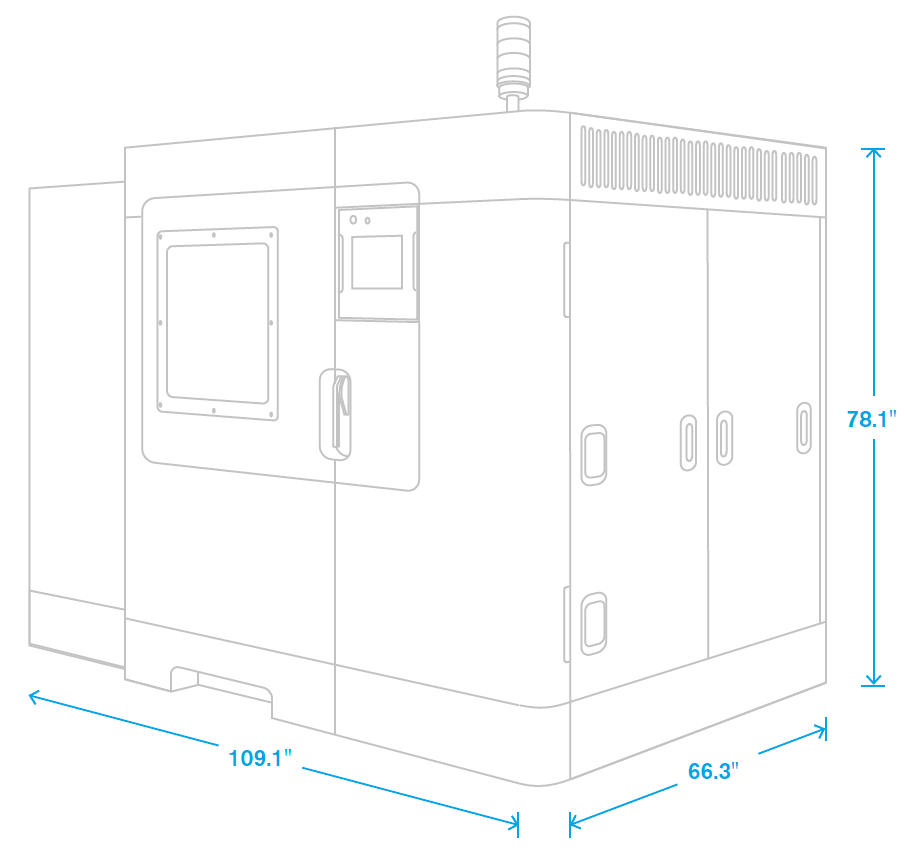

109.1 x 66.3 x 78.1 in.; 6325 lbs. With manufacturing light tower: 109.1 x 66.3 x 89.8 in.
Soluble for most materials; break-away for PC-ISO, ULTEM and PPSF; soluble or break-away for PC
CE
All Fortus systems include Insight and Control Center™ job processing and management software. Compatible with GraCAD Print for use with job reports, scheduling and remote monitoring. U.S. government agency STIG compliance via Stratasys ProtectAM technology is powered by Red Hat® Enterprise Linux® software.
FDM 3D Printers use a variety of engineering-grade thermoplastics to manufacture functional parts. FDM thermoplastics are environmentally stable, so overall shape and part accuracy don’t change with ambient conditions over time. Materials are easy to change with no mess or complicated processes.
